R-454B

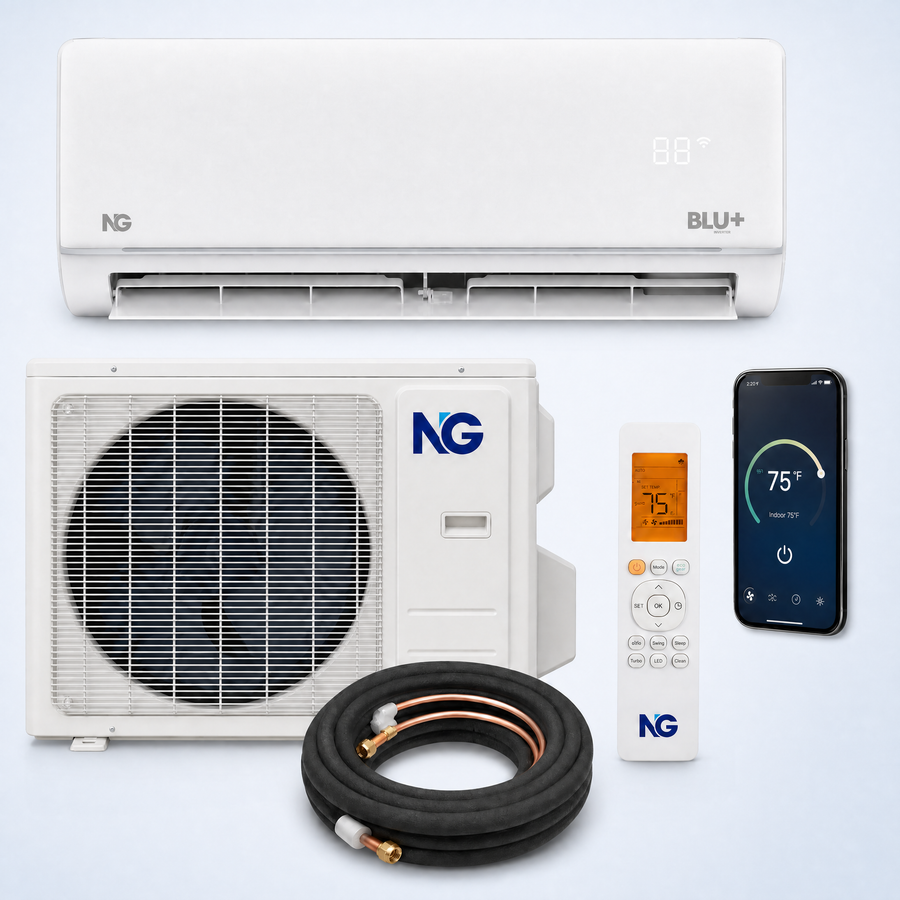

What's included: indoor unit, outdoor condenser, line set, remote, app

BLU+ 18,000 BTU Mini Split Heat Pump System, 220V, R-454B, 20.2 SEER2

Name: BLU+ 18,000 BTU Mini Split Heat Pump System, 220V, R-454B, 20.2 SEER2
Brand: NG Trade
SKU: OBMH181B-KIT
Price: 989.0 USD
Availability: InStock

5.0 on Google AHRI

20.2

SEER2

18K

BTU

700–1,000

sq ft coverage

220V

Voltage

Price$989.00

Plus sales tax, calculated at checkout. Installment amounts shown are based on the price before tax. Más impuestos, calculados al finalizar la compra. Las cuotas mostradas no incluyen impuestos.

Complete system: indoor + outdoor unit, 16 ft line set, remote & app included.

EnergyGuide label · FTC estimated yearly energy cost

Pay over time with Shop Pay at checkout

0% split-pay is available on checkout totals under $1,000. Larger systems finance monthly through Shop Pay, with the rate shown at checkout. El pago en 4 cuotas sin interés aplica a totales menores de $1,000. Los sistemas más grandes se financian por mes con Shop Pay, con la tasa mostrada al finalizar la compra.

Free shipping · ships from CA & TX

Estimated delivery: 7 to 13 business days, including processing and transit.

Trusted by HVAC contractors and supply houses across California and Texas.

Need an installer? We'll connect you

Need help choosing?

Complete kit: indoor + outdoor, ready to install
Heats & cools, Wi-Fi + remote included
16 ft insulated line set in the box
R-454B refrigerant

AHRI Listed
Up to 8-yr warranty
ENERGY STAR Certified · AHRI 216598384 · 20.20 SEER2 · ENERGY STAR Most Efficient
30-Day Returns
SHOP PAYVISAMCAMEX

Uses next-generation R-454B refrigerant. Final refrigerant connection and startup by an EPA-608 certified technician keeps your warranty valid and your install safe.

How installation worksShips ready for your technician. A licensed local pro handles mounting, refrigerant connection, and startup.

Installation

Every BLU+ system must be installed by a licensed HVAC technician to keep your warranty. Installation cost is set by the installer and varies by home.

Need an installer? Tell us your zip code and we'll connect you with a licensed installer in your area within one business day. We work with licensed contractors across California and Texas every day.

Prefer to call? 1-877-811-1251

How long is the warranty?

Every system carries 6-year compressor, 3-year parts, and 90-day remote coverage automatically, no registration required. Register within 60 days of installation and the term extends to 8-year compressor and 5-year parts. Full terms are on our warranty page.

How fast does it ship?

Orders are processed and ship within 2 to 3 business days from our California and Texas warehouses. Freight is free and already included in the price, with no separate freight charge at checkout. Transit typically runs 5 to 10 business days after it ships, depending on distance from the hub. Details are on our shipping policy.

Who installs it?

A licensed local HVAC technician handles installation, including mounting, refrigerant connections, and startup. Installation labor is separate and paid to your technician. Arrange installation with them. Orders typically dispatch in 2 to 3 business days, followed by 5 to 10 business days in transit: an estimated 7 to 13 business days total, not a guaranteed arrival date.

What does the price include?

The price includes the indoor unit, the matched outdoor condenser, a remote with Wi-Fi, and a 16 ft insulated line set.Freight shipping is included too, so there is no separate shipping charge. Sales tax is added at checkout for orders shipping to California and Texas.

What if I need to return it?

You have 30 days from delivery to return unused, uninstalled equipment in its original packaging. Non-defective returns carry a 15% restocking fee, and once a unit is installed or charged with refrigerant it can no longer be returned except under warranty. Full details are on our returns policy.

Features

What it does.

Wi-Fi + app control

Heats & cools

Quiet inverter

Dehumidify mode

Sleep mode

Auto-restart

Complete your install

Add what the job needs.

Everything the installer needs on day one.

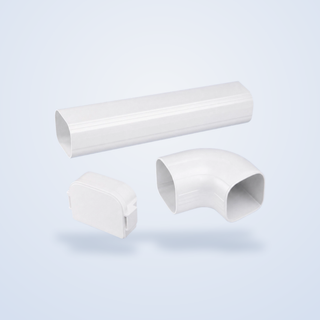

NG Line Set Cover Kit - 4 in

$70.00

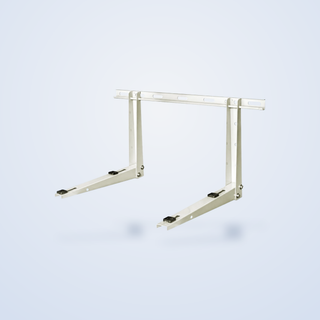

NG Condenser Wall Bracket - Holds 220-550 lbs

$60.00

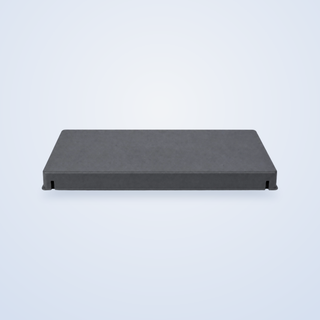

NG Condenser Equipment Pad - Holds up to 900 lbs

$60.00

BLU+ Mini Split Replacement Remote Control

$45.00

Performance

Cooling

18KBTU

20.2SEER2

11.5EER2

Heating

18800BTU

9.1HSPF2

AHRI CertifiedRef #216598384 · independently rated. View the certificate

Documents

EnergyGuide label AHRI certificate Owner’s manual

What's in this system

Indoor wall-mounted unit (18K)
Matched outdoor condenser
Remote control, Wi-Fi built in
16 ft insulated line set
Mounting plate & install hardware

Professional installation required. Final refrigerant hookup should be done by an EPA-608 certified technician.

The numbers

Model	IBMH181B + OBMH181B
Cooling capacity	18K BTU
Heating capacity	18800 BTU
Voltage	220V
SEER2	20.2
HSPF2	9.1
EER2	11.5
Refrigerant	R-454B
System type	Single-Zone
AHRI ref #	216598384
Energy Star	No
Cold-climate rated	No

Real installs

Mini split outdoor condenser mounted on the exterior wall of a brick house

Mini split outdoor condenser mounted on a blue metal building

Mini split indoor unit mounted on the wall of a finished basement

Mini split outdoor condenser mounted on the exterior wall of a wood-sided building

Overview

Complete 18,000 BTU single-zone inverter heat pump system on R-454B refrigerant. Includes the indoor wall-mount head and its matched outdoor condenser. 220V. Wi-Fi and remote included, 16 ft line set.

Questions

Good to know.

Does this kit come with everything to install it?

It includes the indoor unit, the matched outdoor condenser, a remote, and a 16 ft insulated line set. Your installer supplies the disconnect, electrical whip, and any longer line set your installation needs. These items are not included or sold in our Accessories collection. Line set covers are sold separately.

What size room does a 18K BTU unit cool?

Published coverage of about 700 to 1,000 sq ft is an approximate guide only. Capacity depends on climate, insulation, windows, ceiling height, and layout. Have a qualified HVAC professional perform a load calculation and confirm the system capacity before ordering. Our sizing guide offers additional background.

Who installs it?

What refrigerant does it use?

R-454B is the newer low-GWP refrigerant that replaces R-410A on current high-efficiency systems. It is more environmentally friendly and is what our BLU+ line runs. More on refrigerants.

How does shipping work?

Shipping is free to the lower 48 states. Orders typically dispatch in 2 to 3 business days, followed by 5 to 10 business days in transit: an estimated 7 to 13 business days total, not a guaranteed arrival date. Large units ship LTL freight from California or Texas. Tracking is provided when the order ships.

Reviews

What customers say.

★★★★★5.0 on Google·California & Texas

Jonathan

★★★★★

Great products, backed by great people. I’ve installed a couple of these units and the quality is excellent. The team is always there, making time for my crazy schedule. Highly recommended.

Verified · Google

Andres

★★★★★

I recently chose NG Trade for my HVAC needs, and I’m extremely satisfied. From their prompt response to their efficient equipment, every aspect of their service is just perfect.

Verified · Google

Andy

★★★★★

Very reliable and trustworthy. I definitely recommend them for those looking for something economical and with a great warranty. Looking forward to the continued business with this company.

Verified · Google

Need a different size?

SEER2 ratings vary by model and voltage. Check each system's specifications.

BLU+ 9,000 BTU Mini Split Heat Pump System, 115V, R-454B, 21.5 SEER2

Questions on 18K or sizing?

If you're not sure whether this is the right unit, or you want to talk through a full install, our team is available Monday through Friday, 8 am to 5 pm Pacific. Hablamos español.
