R-454BCold-climate rated

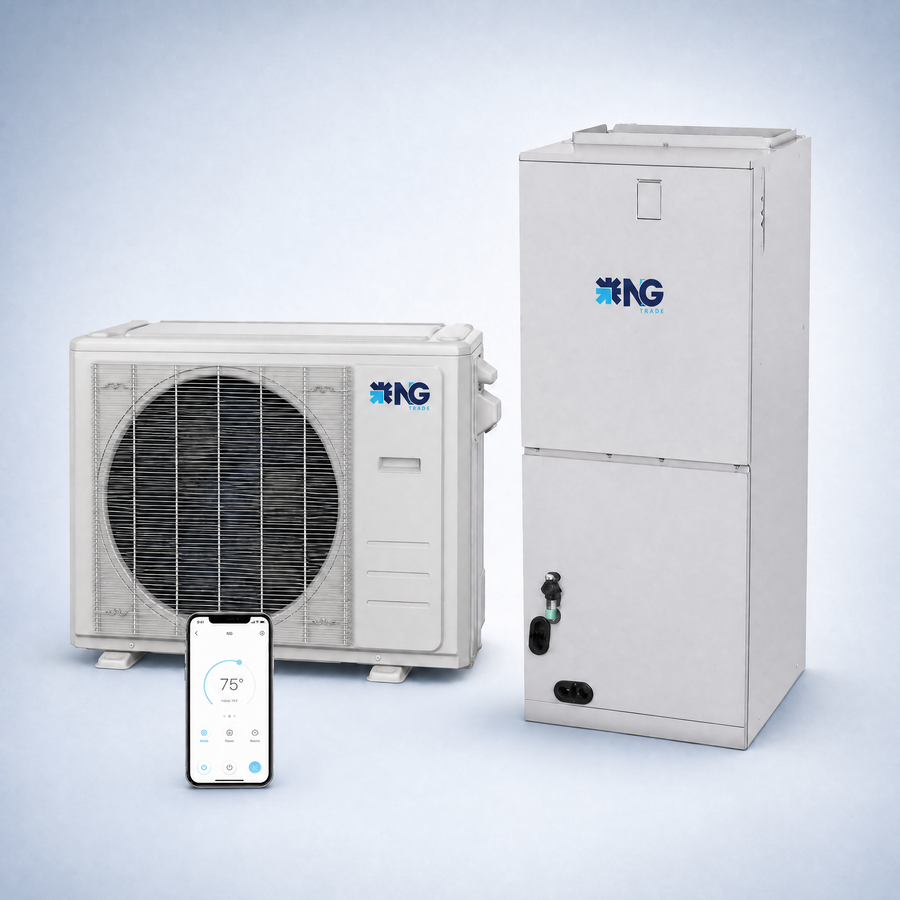

What's included with the EZ Central 24,000 BTU ducted heat pump system: air handler, outdoor condenser, app
EZ Central·Central

EZ Central 24,000 BTU Ducted Mini Split Heat Pump System, Air Handler + Condenser, 115/220V, R-454B, 18.1 SEER2

5.0 on Google AHRI
18.1
SEER2
24K
BTU
up–1,400
sq ft coverage
115/220V
Voltage
Price$2,989.00

Plus sales tax, calculated at checkout. Installment amounts shown are based on the price before tax. Más impuestos, calculados al finalizar la compra. Las cuotas mostradas no incluyen impuestos.

Complete system: indoor air handler + matched outdoor condenser, ready to install.

EnergyGuide label · FTC estimated yearly energy cost
Pay over time with Shop Pay at checkout

0% split-pay is available on checkout totals under $1,000. Larger systems finance monthly through Shop Pay, with the rate shown at checkout. El pago en 4 cuotas sin interés aplica a totales menores de $1,000. Los sistemas más grandes se financian por mes con Shop Pay, con la tasa mostrada al finalizar la compra.

Free shipping · ships from CA & TX
Estimated delivery: 7 to 13 business days, including processing and transit.
Stocked in Cerritos, CA and Houston, TX.
Need an installer? We'll connect you

Need help choosing?

Contractor? Request trade pricing and will-call pickup in Cerritos, CA or Houston, TX.

  • Complete kit: indoor + outdoor, ready to install
  • Heats & cools, Wi-Fi + remote included
  • R-454B refrigerant

Uses next-generation R-454B refrigerant. Final refrigerant connection and startup by an EPA-608 certified technician keeps your warranty valid and your install safe.

How installation worksShips ready for your technician. A licensed local pro handles mounting, refrigerant connection, and startup.

Installation

Every EZ Central system must be installed by a licensed HVAC technician to keep your warranty. Installation cost is set by the installer and varies by home.

Need an installer? Tell us your zip code and we'll connect you with a licensed installer in your area within one business day. We work with licensed contractors across California and Texas every day.

Prefer to call? 1-877-811-1251

How long is the warranty?
Every system carries 6-year compressor, 3-year parts, and 90-day remote coverage automatically, no registration required. Register within 60 days of installation and the term extends to 8-year compressor and 5-year parts. Full terms are on our warranty page.
How fast does it ship?
Estimated delivery: 7 to 13 business days, including processing and transit, from our California and Texas warehouses. Freight is free and already included in the price, with no separate freight charge at checkout. Details are on our shipping policy.
Who installs it?
A licensed local HVAC technician handles installation, including mounting, refrigerant connections, and startup. Installation labor is separate and paid to your technician. Arrange installation with them. Estimated delivery: 7 to 13 business days, including processing and transit. This is an estimate, not a guaranteed arrival date.
What does the price include?
The price includes the indoor air handler and the matched outdoor condenser.Freight shipping is included too, so there is no separate shipping charge. Sales tax is added at checkout for orders shipping to California and Texas.
What if I need to return it?
You have 30 days from delivery to return unused, uninstalled equipment in its original packaging. Non-defective returns carry a 15% restocking fee, and once a unit is installed or charged with refrigerant it can no longer be returned except under warranty. Full details are on our returns policy.
Features

What it does.

Wi-Fi + app control
Heats & cools
Quiet inverter
Dehumidify mode
Sleep mode
Auto-restart
Complete your install

Add what the job needs.

Everything the installer needs on day one.

NG Line Set Cover Kit - 4 in
NG Line Set Cover Kit - 4 in
$70.00
NG Condenser Wall Bracket - Holds 220-550 lbs
NG Condenser Wall Bracket - Holds 220-550 lbs
$60.00
NG Condenser Equipment Pad - Holds up to 900 lbs
NG Condenser Equipment Pad - Holds up to 900 lbs
$60.00
Performance
Cooling
24KBTU
18.1SEER2
11.0EER2
Heating
26000BTU
9.7HSPF2
AHRI CertifiedRef #216763022 · independently rated. View the certificate
Documents
EnergyGuide labelAHRI certificateOwner’s manual

What's in this system

  • Indoor air handler (24K)
  • Matched outdoor condenser
  • Mounting plate & install hardware
Professional installation required. Final refrigerant hookup should be done by an EPA-608 certified technician.

The numbers

ModelEZCENI24K + EZCENO24K
Cooling capacity24K BTU
Heating capacity26000 BTU
Voltage115/220V
SEER218.1
HSPF29.7
EER211.0
RefrigerantR-454B
System typeCentral
AHRI ref #216763022
Energy StarNo
Cold-climate ratedYes

Real installs

Mini split outdoor condenser mounted on the exterior wall of a brick house
Mini split outdoor condenser mounted on a blue metal building
Mini split indoor unit mounted on the wall of a finished basement
Mini split outdoor condenser mounted on the exterior wall of a wood-sided building
Overview

A house that already has ductwork does not need to give it up. The EZ Central 24,000 BTU system pairs a multi-position air handler with its matched outdoor condenser, so the existing ducted distribution stays in place while the equipment behind it becomes an inverter heat pump.

  • Capacity: 24,000 BTU cooling, 26,000 BTU heating
  • Efficiency: 18.1 SEER2, 9.7 HSPF2, 11.0 EER2
  • Power and refrigerant: 115/220V, R-454B
  • Models: EZCENI24K indoor with EZCENO24K outdoor, kit SKU EZCENO24K-KIT
  • Cold climate rated. AHRI reference 216763022

The AHRI certificate, EnergyGuide label and owner's manual are linked on this page. Professional installation is required and quoted separately; labor and job-specific materials are not included. Free shipping to the lower 48 states.

Questions

Good to know.

Does this system come with everything to install it?
It includes the indoor air handler and the matched outdoor condenser. Your installer supplies the disconnect, electrical whip, and correctly sized line set for your installation. These items are not included or sold in our Accessories collection.
What size room does a 24K BTU unit cool?
Published coverage of up to 1,400 sq ft is an approximate guide only. Capacity depends on climate, insulation, windows, ceiling height, and layout. Have a qualified HVAC professional perform a load calculation and confirm the system capacity before ordering. Our sizing guide offers additional background.
Who installs it?
A licensed local HVAC technician handles installation, including mounting, refrigerant connections, and startup. Installation labor is separate and paid to your technician. Arrange installation with them. Estimated delivery: 7 to 13 business days, including processing and transit. This is an estimate, not a guaranteed arrival date.
What refrigerant does it use?
R-454B is the newer low-GWP refrigerant that replaces R-410A on current high-efficiency systems. It is more environmentally friendly and is what our BLU+ line runs. More on refrigerants.
How does shipping work?
Shipping is free to the lower 48 states. Estimated delivery: 7 to 13 business days, including processing and transit. This is an estimate, not a guaranteed arrival date. Large units ship LTL freight from California or Texas. Tracking is provided when the order ships.
